New to outbound simulation? Start with the overview to see how the flow works end to end.

​
The concept

Your system already has an API that starts an outbound call. You give Tuner that API (URL, headers, body), and Tuner calls it for every simulated call, putting the simulation agent’s SIP URI where your body expects the phone number.
What’s a SIP URI? The internet equivalent of a phone number: sip:sim-abc123@sip.usetuner.ai instead of +15551234567. Most telephony providers (Twilio, Telnyx, LiveKit, etc.) accept one anywhere they accept a phone number, so it gets dialed like any other call.
Prerequisite: your agent must already be integrated with Tuner and sending real calls: LiveKit, Pipecat, or Custom API.

​
The Outbound Trigger Endpoint

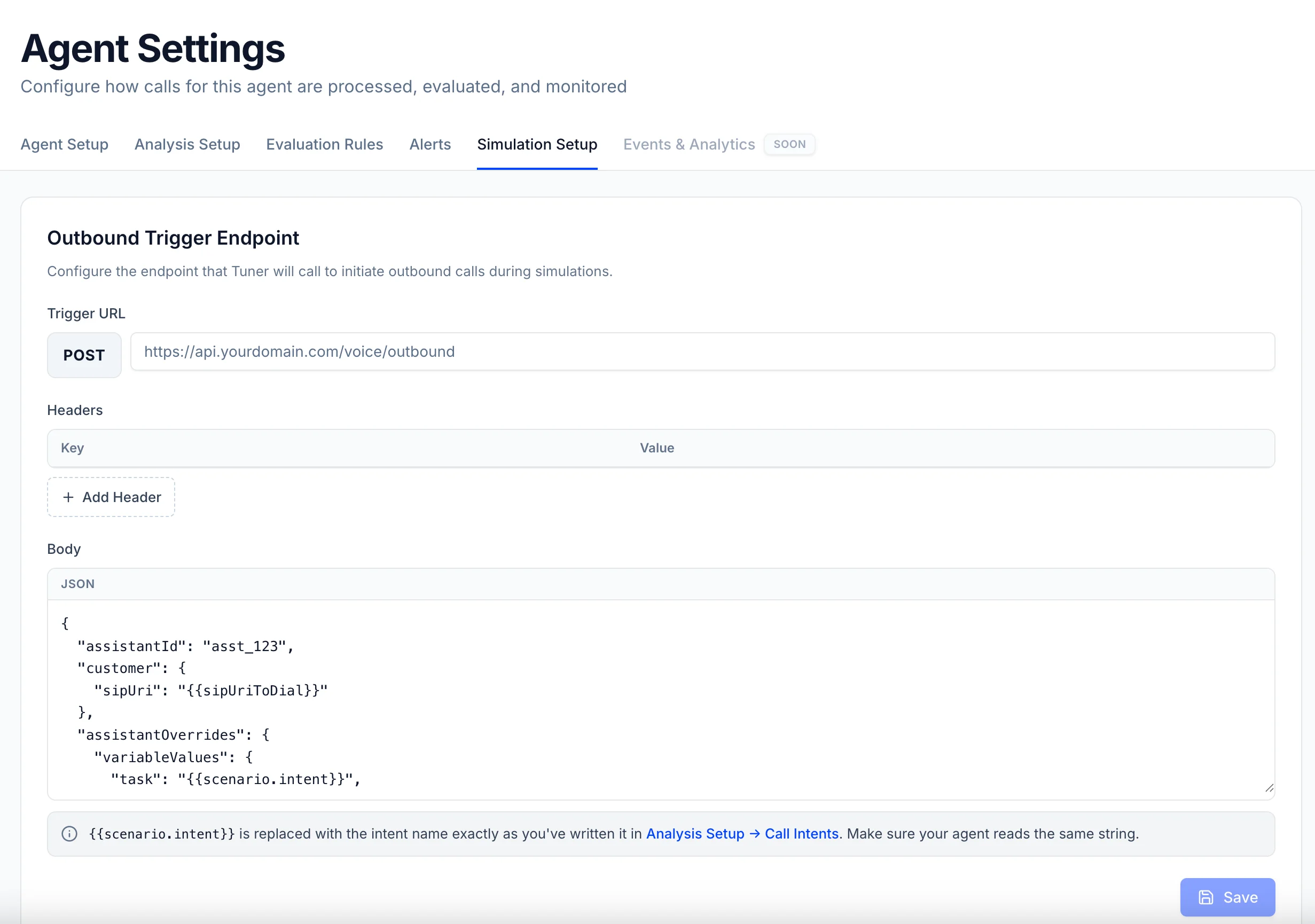

Open Agent Settings → Simulation Setup (your agent must be set up as outbound). This is where you describe your API to Tuner: Agent Settings, Simulation Setup, Outbound Trigger Endpoint
  • Trigger URL, the endpoint on your side that places an outbound call.
  • Headers, whatever your endpoint needs to accept the request (an Authorization token, for example).
  • Body, a JSON template in your endpoint’s shape, containing Tuner’s three placeholders:
PlaceholderReplaced with
{{sipUriToDial}}The SIP URI of the simulation agent. The one value your system must use, it’s who you dial.
{{scenario.intent}}The intent of the call, exactly as written in Analysis Setup → Call Intents. Useful if you run different agents or logic per intent.
{{scenario.customer_name}}The name of the customer being called. Useful to mimic a CRM lookup or a personalized greeting.
The key names are entirely yours (destination, to, phoneNumber, …). All three placeholders need a key in the template, but if you don’t use the intent or the name, just park them under any key, only the SIP URI is essential.

​
Example

Say your endpoint takes a destination and dials it. Somewhere inside, there’s a line like this (LiveKit shown, same concept on any stack):
await ctx.api.sip.create_sip_participant(
    api.CreateSIPParticipantRequest(
        sip_call_to=destination,    # the phone number, or Tuner's SIP URI in simulation
        ...
    )
)
In Tuner, you mirror that endpoint, with {{sipUriToDial}} in the destination field since that’s where the number normally goes: Trigger URL
POST https://api.yourdomain.com/voice/outbound
Headers
KeyValue
AuthorizationBearer YOUR_TOKEN
Body
{
  "destination": "{{sipUriToDial}}",
  "task": "{{scenario.intent}}",
  "customerName": "{{scenario.customer_name}}"
}

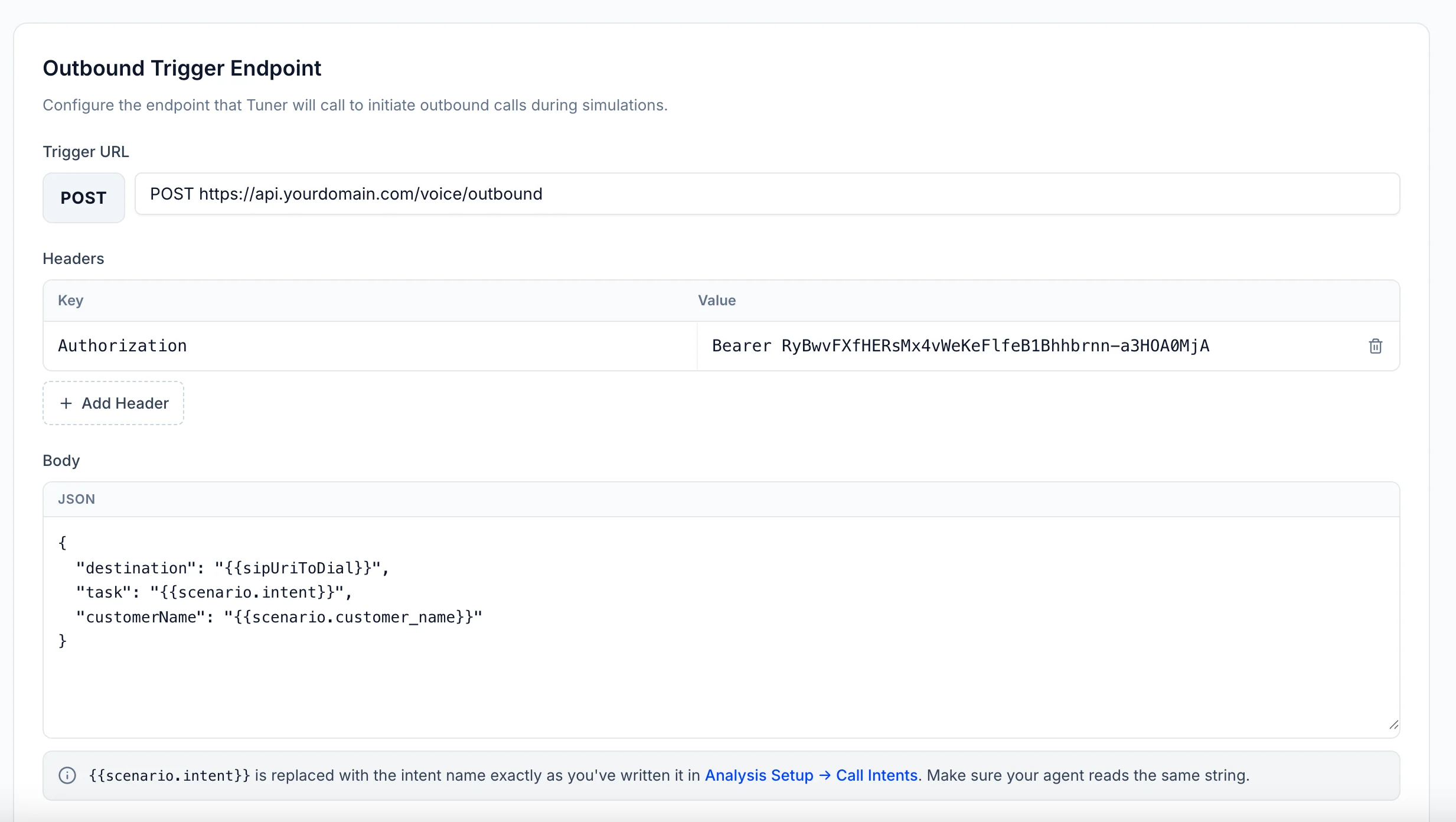

The example endpoint configured in Tuner, Agent Settings → Simulation Setup Click Save, and every simulation run will trigger your endpoint once per scenario.

​
Send the call back with recipient

One requirement remains: when your integration syncs the finished call to Tuner, the dialed SIP URI must be in the recipient field, exactly as Tuner sent it. That’s how Tuner links the call to its simulation, without it, it shows up as ordinary production traffic. Whatever key you put {{sipUriToDial}} under, that’s the value to send back.
Full plugin setup: Connecting to LiveKit.
TunerPlugin(
    session, ctx,
    ...,                     # your existing options
    recipient=destination,   # ← the SIP URI Tuner sent, verbatim
)
Want evals to use the intent or customer name? Echo them back in the call’s metadata when you sync (extra_metadata on the LiveKit plugin, or metadata in the Create Call payload). See Evaluating Agents with Dynamic Instructions.

​
Putting it all together

When you press Simulate:
  1. Tuner creates the simulation agents for the run (personalities, accents, languages, and use cases from your mix), each with its own SIP URI.
  2. For each one, Tuner calls your trigger endpoint, placing the SIP URI wherever you put {{sipUriToDial}}, so your API knows who to call.
  3. Your agent dials and has the conversation.
  4. Your integration syncs the call back with the SIP URI in recipient, so Tuner links it to the simulation and runs your Evals.

​
Troubleshooting

The synced call’s recipient didn’t match the SIP URI Tuner sent: it was never set, modified, or a different value was sent. Compare the URI your endpoint received byte-for-byte with the recipient on the synced call.
The dial failed on your side. Check your platform’s logs, and confirm your trunk can dial a SIP URI (some configurations only allow phone numbers).
Check the Headers saved in Simulation Setup, and confirm the body template matches the shape your endpoint expects.

Run your first simulation

Configure your simulation mix and start a batch.
